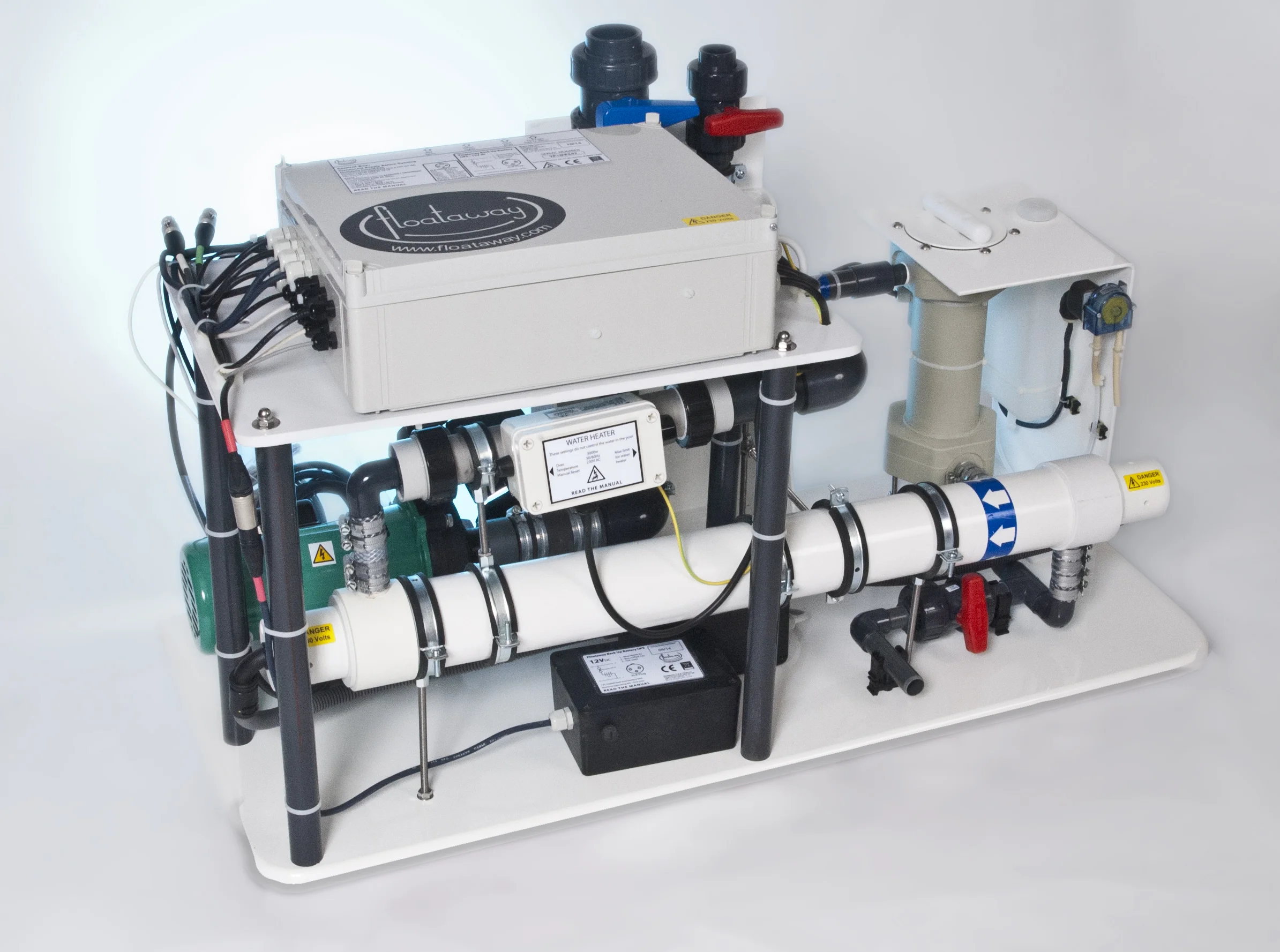

tech pack 02.jpg
The Cabin ForTwo at  Bare Flyt, Norway

The Cabin ForTwo at Bare Flyt, Norway

Technical Packs for your pools

Floataway's technical packs can be fitted to a variety of pool designs. We use our extensive experience to engineer the best system to meet your needs. Technical packs are built to meet the client's specification and requirements.  They are designed to be fitted in a separate pump room with a drained floor.

Floataway makes two standard technical packs, the TP1500 and the TP3000. They are built to order so can be specified for space limitations or pipe entry/exit if needed.

More complexity

While we like to keep everything as simple as possible, larger systems can get complex and we are experts in finding solutions.  For example, in a larger pool there is a lot of expensive salt; it cannot be dumped every time a clean is required or a lamp fails.  This requires storage, and extra pumps and controls.  Many standard swimming pool components cannot cope with concentrated salt solutions.  Furthermore, the salt density brings challenges of its own; for instance, the salt can separate within the solution in a large salt pool leaving areas of denser salt which will overcome natural convection.  Floataway has developed technical answers to all these issues with practical experience as well as a solid theoretical base.

We think it is true to say no one else has this unique blend of experience and products for managing float pools.

Interface Panel

The panel interface is a GRP flanged plate designed to be incorporated into a concrete float pool.  It is built to be flat and comes in any colour although white is recommended.  It is equipped with a skin transponder for quality underwater sound, lights and sensors, and a skimmer plate.  It can be piped and wired directly to our technical packs, and as with all our products, can also be customised to suit individual customers.
The flanged plate is typically built into the pool with bonding and tiled over the all round flange using epoxy mastic and epoxy grout.  This makes a permanent servicing point where the services as well as the music can be reached from the outside of the pool without drain down.

Tech packs

standard range

Image for illustration

Image for illustration

The TP1500

Standard Technical Pack for floatation pool :

Maximum Volume of Pool: 1500Lt

Pack consists of:

  • Installation instructions manual

  • GRP chassis

  • 1.5" inlet pipe with tap/connector & 1.5" outlet pipe with tap/connector

  • 0.37KW Single phase mag-drive pump - approximately 120 Lt/Min on anti-vibration mounts

  • Floataway's top loading minimum spill filter housing

  • cartridge set

  • filter closed detector

  • control box

  • 3kw external controlled heater with thermal protection

  • flow detector

  • temp probe in suction line

  • max temp sensor in output line 40ºC set

  • drain down valve

  • Inlet water detector and pump shut off circuit

  • air hose and remote air sender (to switch pump)

  • programmable timer to run the pump for fixed time sequence

  • Over temperature water alarm output light and sounder

  • low water alarm output light and sounder

  • requires 208-240v 50/60Hz 20Amp supply via RCD/GFCI & Isolator Switch

  • all connected together on chassis - foot print 115 x 52 cm



Image for illustration

The TP3000

Standard Technical Pack for floatation pool :

Maximum Volume of Pool: 3000Lt

Pack consists of:

  • Installation instructions manual

  • GRP chassis

  • 1.5" inlet pipe with tap/connector & 1.5" outlet pipe with tap/connector

  • 0.55KW Single phase mag-drive pump - approximately 180 Lt/Min on anti-vibration mounts

  • Floataway's top loading minimum spill filter housing

  • cartridge set

  • filter closed detector

  • control box

  • 3kw external controlled heater with thermal protection (output 1)

  • second 3kw external heater with thermal protection (output 2)

  • flow detector

  • temp probe in suction line

  • max temp sensor in output line 40ºC set

  • drain down valve

  • Inlet water detector and pump shut off circuit

  • air hose and remote air sender (to switch pump)

  • programmable timer to run the pump for fixed time sequence

  • Over temperature water alarm output light and sounder

  • low water alarm output light and sounder

  • requires 208-240v 50/60Hz 20Amp supply via RCD/GFCI & Isolator Switch

  • all connected together on chassis - foot print 115 x 52 cm

Image for illustration

Image for illustration

Custom Tech Packs

Floataway is able to offer a comprehensive design consultancy and implementation service for organisations, companies and individuals. We can successfully undertake any work requiring a combination of qualified engineers and designers.

We have extensive experience working in conjunction with architects in the UK and internationally on projects from concept visualisation to completion.

Floataway has provided consultancy for projects including:

  • Technical advice and part specification for Spa projects

  • Custom float room design with technical support

  • Technical water systems for contractors to self fit

  • Custom float rooms, designed and installed on site by our engineers
